Carbon paste

Product Instruction


Product Definition

Electrode paste is a type of carbon paste that binds solid carbon materials with adhesive, and begins to soften around 60℃. The properties of solid carbon material are antioxidation, corrosion resistance, high conductivity, such solid carbon material includes Electrically Calcined Anthracite(ECA), carbon residue, calcined petroleum coke and graphite scrap. The binder is soft pitch.

Principle

The product is added to the motor housing which is made of steel plate, the resistance heat generated after being electrified causes it to sinter and coke into electrodes, a lower voltage but a higher current in theelectric furnace, and it is transmitted to the furnace through the electrode, the arc generated by the end of the electrode, and the melt in the furnace, the electric energy is converted into heat energy for high emperature smelting, as smelting proceed, the electrode paste is gradually consumed.

Applications

Electrode paste is mainly applied to ferroalloy and calcium carbide smelting industry, used as self-bake electrode on large electric furnace.

Matters Needing Attention

The electrode is the core of the electric furnace, which directly determines the efficiency and survival of the enterprise, therefore it requires a high storage environment condition.A separate dust-free storage warehouse is compulsory, along with takes along with uses, and it is strictly prohibited to store a large amount of paste on the roof. Tight control the height of the paste column according to the diameter of the electrode, and well distributed the electrode paste by each single shift as appropriate.

The Metallurgical Standard of the People's Republic of China (YB/T 4448-2014) specifies the classification, technical requirement, test methods, inspection rules, package, mark, transportation and storage of self-bake electrode pastes used in closed type, semi-closed type and open type of electric furnace.

Quality Requirements of Industry Standards for Electrode Paste

Items	Unit	Index
Items	Unit	No.1	No.2	No.3	No.4	No.5
Ash Content	%≤	3.0	4.0	5.0	6.0	7.0
Volatile	%	9.5~15.5	9.5~15.5	9.5~15.5	9.5~15.5	9.5~15.5
Compressive Strength	Mpa≥	19	20	21	22	23
Specific Resistance	μΩm≤	36	35	70	75	78
Bulk Density	g/cm³	1.40	1.40	1.40	1.40	1.40
Elongation	%	5~20	5~20	5~30	10~40	10~40

Note: Elongation index is for reference only; Recommended use: No.1 and No.2 can be used for mineral furnace with power of 40000kVA or greater, and No.3 and No.4 can be used for mineral furnace with power of 25000~40000kVA; No.5 can be used for mineral furnace with power of up to 25000kVA.

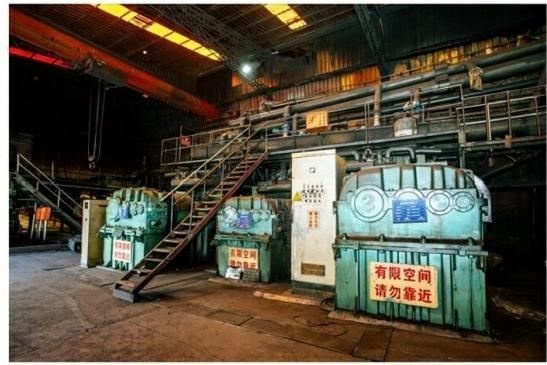

Production Equipment

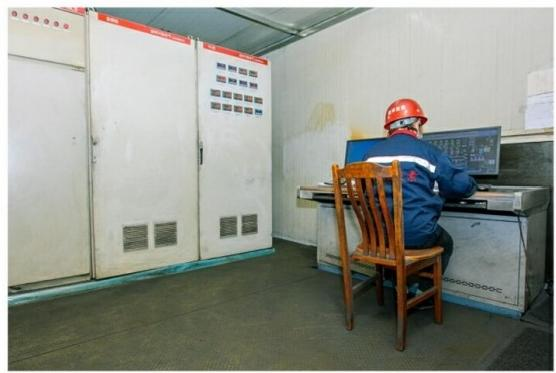

Automatic Batching System

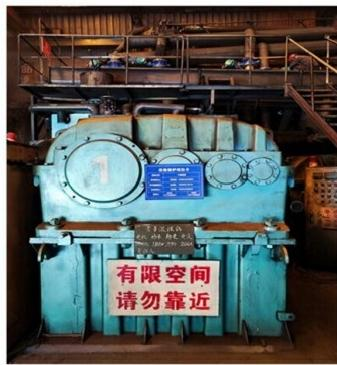

Kneading System

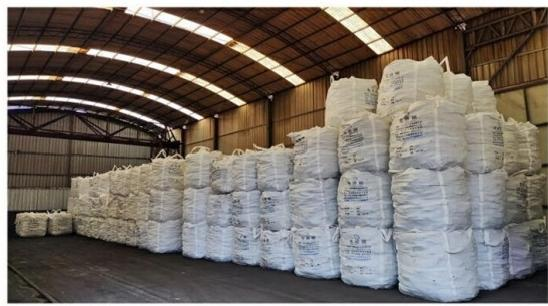

Packing and storage

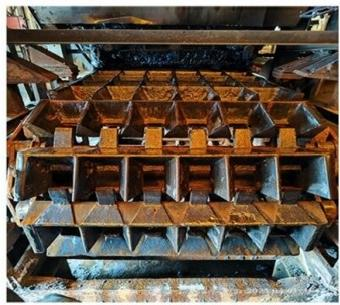

Forming Machine
5000L Kneading Pot

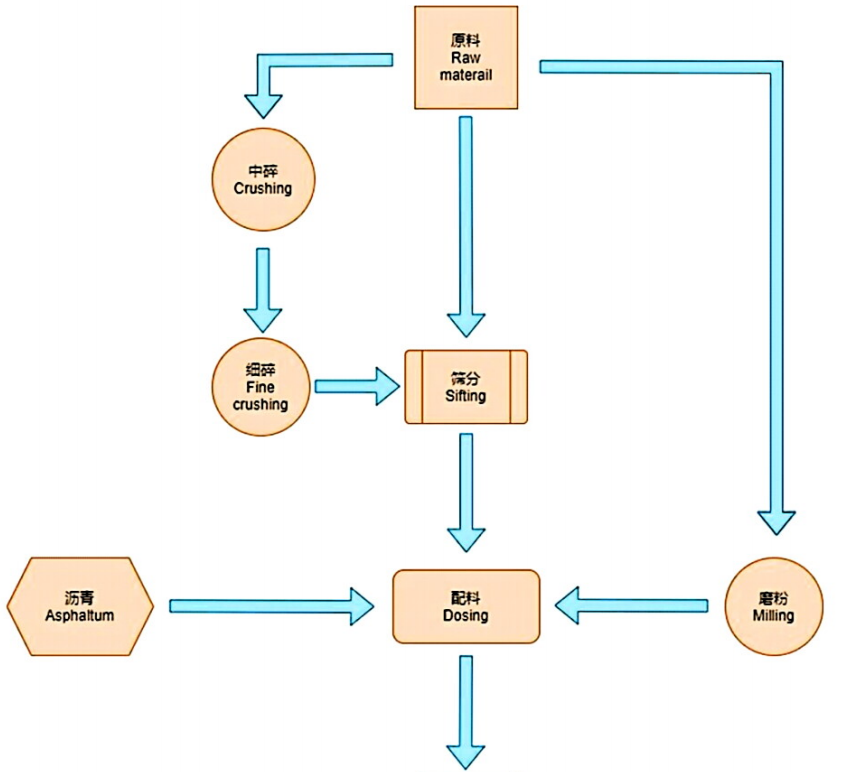

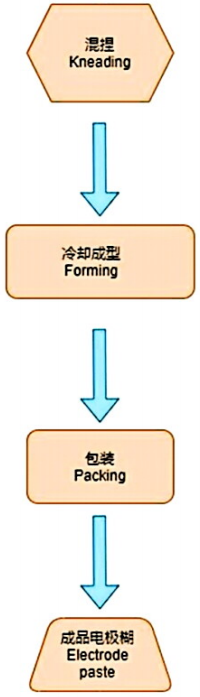

Production Process



Inspection Equipment

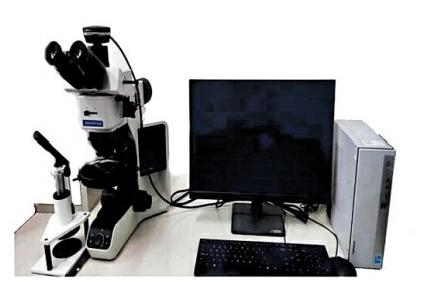

Polarizing microscope
Resistivity meter

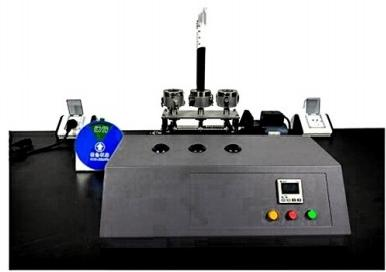

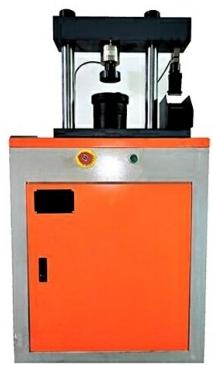

Carbon paste elongation tester
Density tester
Muffle furnace

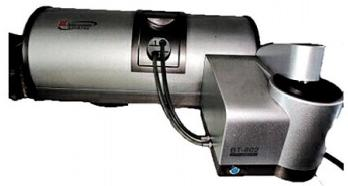

Laser particle size distribution instrument
